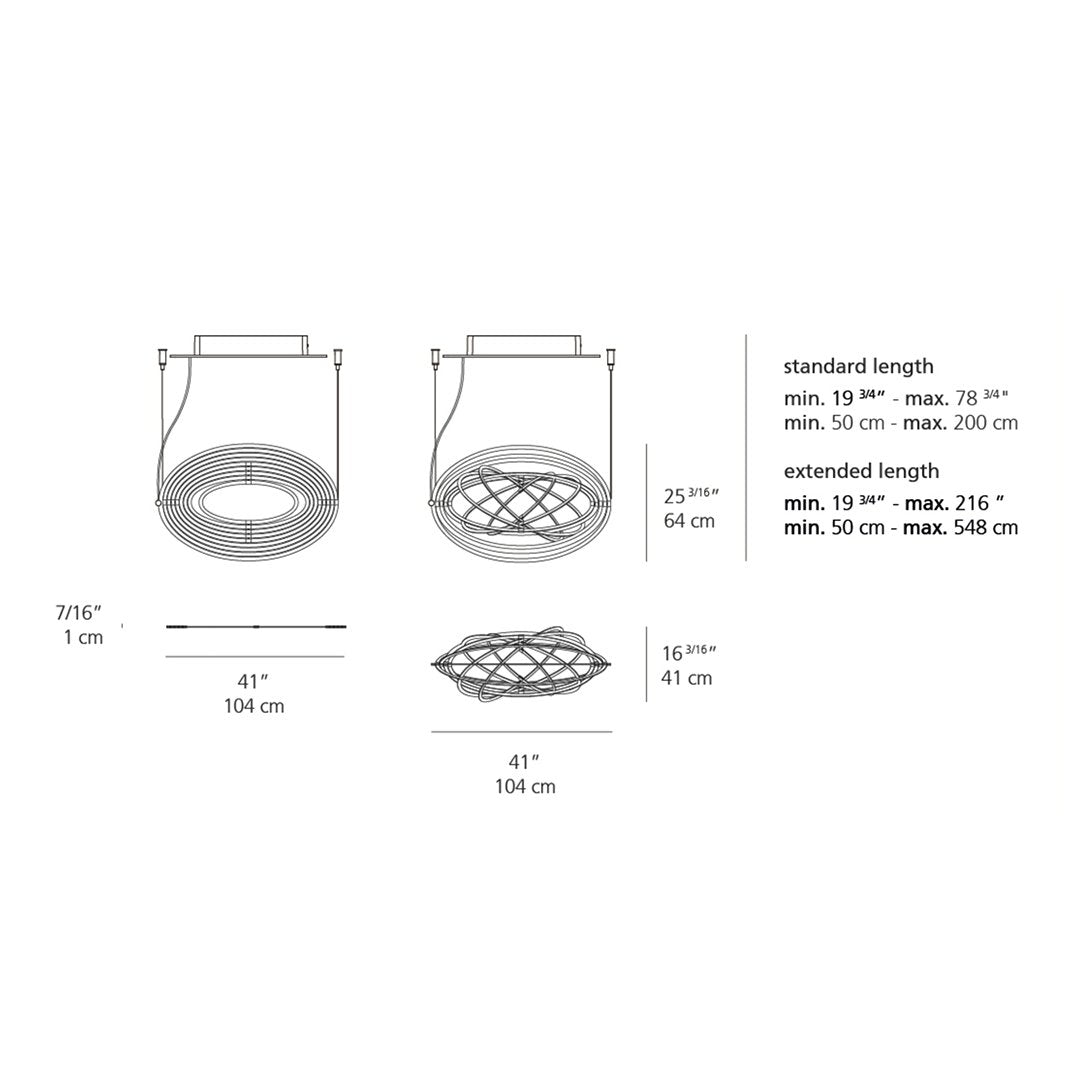

Dimensions:
See image to the left
Materials:
Made in anodized aluminum
9 concentric mobile ellipses obtained by an aluminum plate support a circuit of 384 LEDs
Light Source:
LED Integrated Light Source
LED-I 30W
3000K
>80 CRI
120 - 277V
2549 Lumens
Control Type: Dimmable 2-Wire
UL Listed

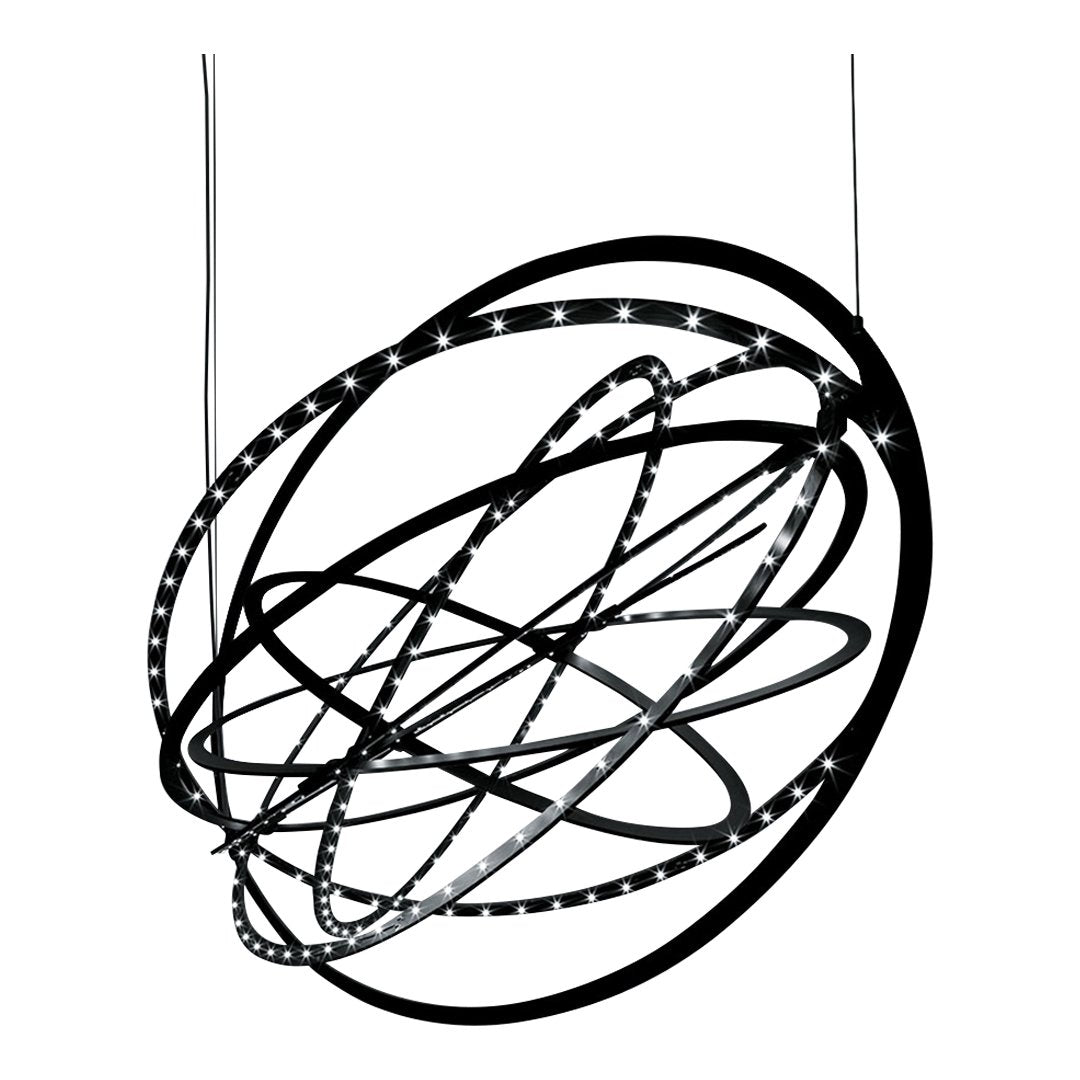

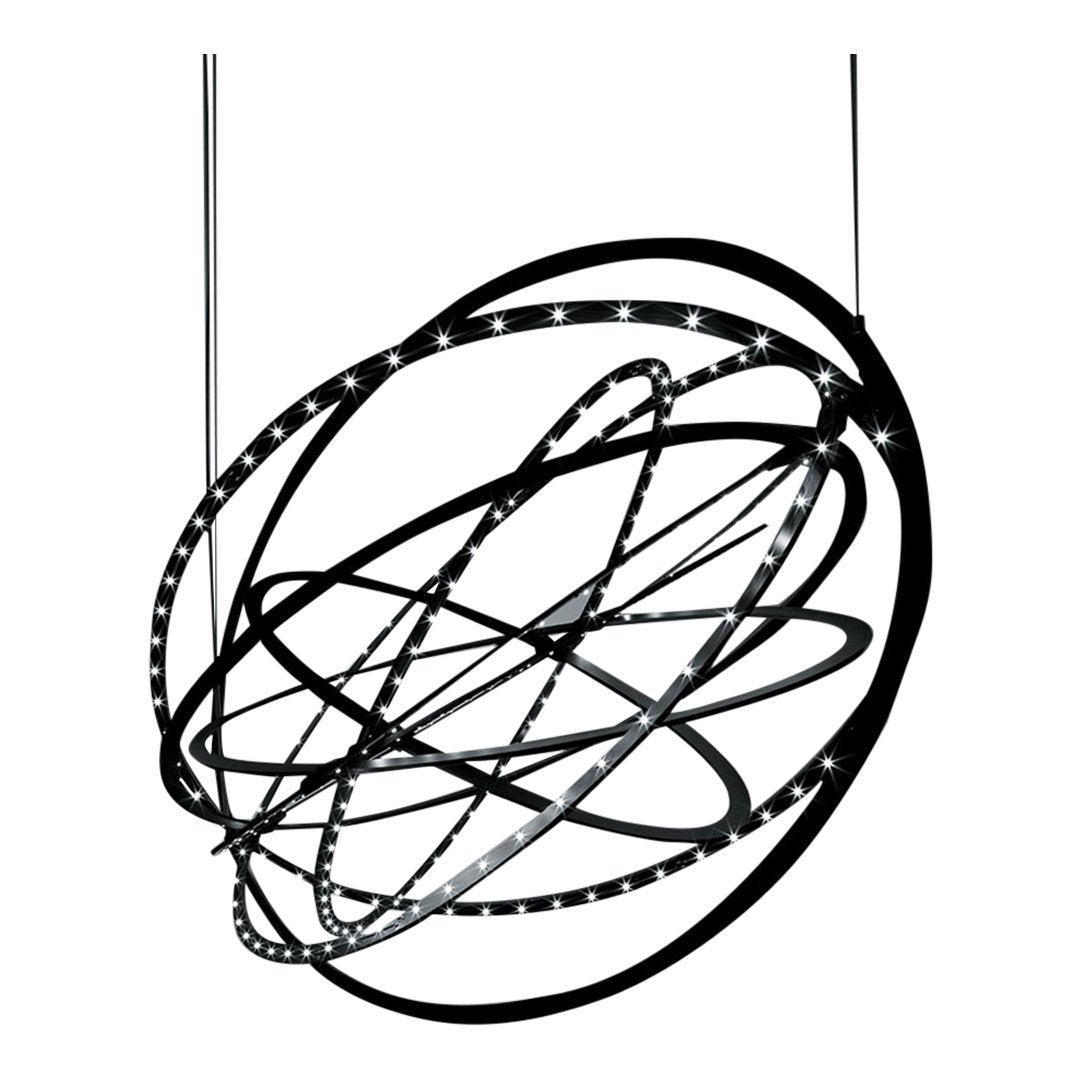

A fixture which lays flat for shipping opens up to concentric ellipses created by laser-cutting of a single aluminum plate. The different elements can be positioned on separate axes from each other allowing light direction and varied spatial configurations.
The ellipses rotate independently on two different axes enabling light to be directed.
Numerous spatial configurations can be obtained by adjusting the rings as needed.
When the device is closed up it is completely flat.
Copper connections allow placement of hundreds of LEDs.
